Sandwich panel screw DP2

Sandwich panel screw DP2

WOOD - SS A2 304 Article number: 10020263

Washer diameter:
3/4 "
- 5/8 "
- 3/4 "
- 27/32 "
Size:
Select an option
- 2 1/4"
- 2 7/8"
- 3 7/8"
- 4 7/8"
- 5 5/8"
- 6 3/8"
- 7 1/4"
- 8"
- 8 3/4"
- 9 5/8”
- 10 3/8"
- 11 3/4"
Coating:

Base

Application

Sandwich panels SS A2 304 Wood

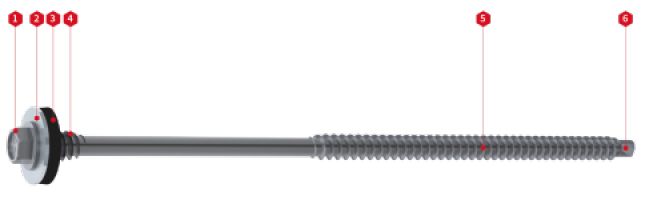

Specifications

Head style 5/16"
Washer diameter standard 3/4”
SS EPDM bond seal
Support thread
Thread for substructure wood
Drilling point 2 reduced

Options

Powder coated in any desired RAL Color
Washer diameter 5/8” or 27/32”

Certificates

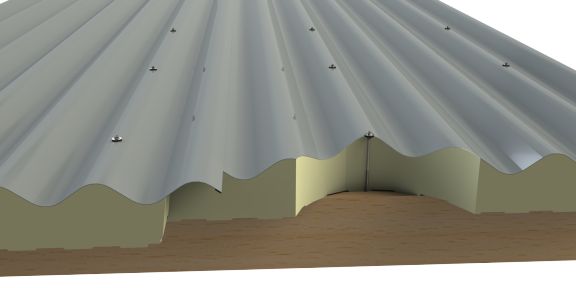

Cross section

Applications

By using the below table, you can easily determine the required screw length.

Size	Minimal Insulation thickness													Article code
	0 ”	25/32”	1 18/32”	2 11/32”	3 4/32”	3 29/32”	4 22/32”	5 15/32”	6 8/32”	7 1/32”	7 26/32”	8 19/32”	9 12/32”
1/4 - #14 x 2 1/4"	0 - 9/16”													1002026306019
1/4 - #14 x 2 7/8"	0 - 31/32”													1002026307519
1/4 - #14 x 3 7/8"	0 - 1 31/32”													1002026310019
1/4 - #14 x 4 7/8"	0 - 2 15/16”													1002026312519
1/4 - #14 x 5 5/8"	0 - 3 23/32”													1002026314519
1/4 - #14 x 6 3/8"	0 - 4 1/2”													1002026316519
1/4 - #14 x 7 1/4"	0 - 5 5/16”													1002026318519
1/4 - #14 x 8"	0 - 6 3/32”													1002026320519
1/4 - #14 x 8 3/4"	0 - 6 7/8”													1002026322519
1/4 - #14 x 9 5/8”	0 - 7 21/32”													1002026324519
1/4 - #14 x 10 3/8"	0 - 8 7/16”													1002026326519
1/4 - #14 x 11 3/4"	0 - 9 27/32”													1002026330019

Order information

Product	Size	Packaging	Article code
Sandwich Panel Screw 1/4 - #14 x 2 1/4" – DP2	2 1/4"	100 pcs/box	1002026306019
Sandwich Panel Screw 1/4 - #14 x 2 7/8" – DP2	2 7/8"	100 pcs/box	1002026307519
Sandwich Panel Screw 1/4 - #14 x 3 7/8" – DP2	3 7/8"	100 pcs/box	1002026310019
Sandwich Panel Screw 1/4 - #14 x 4 7/8" – DP2	4 7/8"	100 pcs/box	1002026312519
Sandwich Panel Screw 1/4 - #14 x 5 5/8" – DP2	5 5/8"	100 pcs/box	1002026314519
Sandwich Panel Screw 1/4 - #14 x 6 3/8" – DP2	6 3/8"	100 pcs/box	1002026316519
Sandwich Panel Screw 1/4 - #14 x 7 1/4" – DP2	7 1/4"	100 pcs/box	1002026318519
Sandwich Panel Screw 1/4 - #14 x 8" – DP2	8"	100 pcs/box	1002026320519
Sandwich Panel Screw 1/4 - #14 x 8 3/4" – DP2	8 3/4"	100 pcs/box	1002026322519
Sandwich Panel Screw 1/4 - #14 x 9 5/8” – DP2	9 5/8”	100 pcs/box	1002026324519
Sandwich Panel Screw 1/4 - #14 x 10 3/8" – DP2	10 3/8"	100 pcs/box	1002026326519
Sandwich Panel Screw 1/4 - #14 x 11 3/4" – DP2	11 3/4"	100 pcs/box	1002026330019

Mechanical properties

5/8''

3/4''

27/32''

Materials
Screw	Stainless steel 1.4301 (A2) – according to EN ISO 3506
Bond washer	Stainless steel 1.4301 (A2) – according to EN ISO 3506
Material A (tl)	SteelQuality S280GD, S320GD and S350GD - according to EN 10346
Material B (tll)	Wooden Support according to DIN EN 338, ρ = 22 lb/ft3(min. C24)
Drilling capacity	Wood

Washer diameter 5/8 "

		tN1 Ga]	d, D [inch]
			1 5/32"	1 9/16"	1 31/32"	2 11/32"	2 3/4"	3 1/8"	3 15/16"	4 23/32"	5 1/2"	>6 9/32"
	VR,k [kN]	28 Ga	231	231	231	231	231	231	231	231	231	231
		26 Ga	303	303	303	303	303	303	303	303	303	303
		25 Ga	339	339	339	339	339	339	339	339	339	339
		23 Ga	395	395	395	395	395	395	395	395	395	395
		22 Ga	481	481	481	481	481	481	481	481	481	481
		21 Ga	481	481	481	481	481	481	481	481	481	481
		20 Ga	481	481	481	481	481	481	481	481	481	481
	NR,k [kN]	28 Ga	294	294	294	294	294	294	294	294	294	294
		26 Ga	312	312	312	312	312	312	312	312	312	312
		25 Ga	368	368	368	368	368	368	368	368	368	368
		23 Ga	456	456	456	456	456	456	456	456	456	456
		22 Ga	456	456	456	456	456	456	456	456	456	456
		21 Ga	456	456	456	456	456	456	456	456	456	456
		20 Ga	456	456	456	456	456	456	456	456	456	456
	u [inch]	-	5/16"	5/16"	3/8"	15/32"	17/32"	5/8"	25/32"	15/16"	1 3/32"	1 1/4"

Above mentioned values are characteristic values
To determine the design value, we suggest applying a material factor of γm = 1,33.

Materials
Screw	Stainless steel 1.4301 (A2) – according to EN ISO 3506
Bond washer	Stainless steel 1.4301 (A2) – according to EN ISO 3506
Material A (tl)	SteelQuality S280GD, S320GD and S350GD - according to EN 10346
Material B (tll)	Wooden Support according to DIN EN 338, ρ = 22 lb/ft3(min. C24)
Drilling capacity	Wood

Washer diameter 3/4 "

		tN1 [inch]	d, D [inch]
			1 5/32"	1 9/16"	1 31/32"	2 11/32"	2 3/4"	3 1/8"	3 15/16"	4 23/32"	5 1/2"	>6 9/32"
	VR,k [kN]	28 Ga	231	231	231	231	231	231	231	231	231	231
		26 Ga	303	303	303	303	303	303	303	303	303	303
		25 Ga	339	339	339	339	339	339	339	339	339	339
		23 Ga	395	395	395	395	395	395	395	395	395	395
		22 Ga	481	481	481	481	481	481	481	481	481	481
		21 Ga	481	481	481	481	481	481	481	481	481	481
		20 Ga	481	481	481	481	481	481	481	481	481	481
	NR,k [kN]	28 Ga	382	382	382	382	382	382	382	382	382	382
		26 Ga	382	382	382	382	382	382	382	382	382	382
		25 Ga	456	456	456	456	456	456	456	456	456	456
		23 Ga	456	456	456	456	456	456	456	456	456	456
		22 Ga	456	456	456	456	456	456	456	456	456	456
		21 Ga	456	456	456	456	456	456	456	456	456	456
		20 Ga	456	456	456	456	456	456	456	456	456	456
	u [inch]	-	5/16"	5/16"	3/8"	15/32"	17/32"	5/8"	25/32"	15/16"	1 3/32"	1 1/4"

Above mentioned values are characteristic values
To determine the design value, we suggest applying a material factor of γm = 1,33.

Materials
Screw	Stainless steel 1.4301 (A2) – according to EN ISO 3506
Bond washer	Stainless steel 1.4301 (A2) – according to EN ISO 3506
Material A (tl)	SteelQuality S280GD, S320GD and S350GD - according to EN 10346
Material B (tll)	Wooden Support according to DIN EN 338, ρ = 22 lb/ft3(min. C24)
Drilling capacity	Wood

Washer diameter 27/32 "

		tN1 [inch]	d, D [inch]
			1 5/32"	1 9/16"	1 31/32"	2 11/32"	2 3/4"	3 1/8"	3 15/16"	4 23/32"	5 1/2"	>6 9/32"
	VR,k [kN]	28 Ga	231	231	231	231	231	231	231	231	231	231
		26 Ga	303	303	303	303	303	303	303	303	303	303
		25 Ga	339	339	339	339	339	339	339	339	339	339
		23 Ga	395	395	395	395	395	395	395	395	395	395
		22 Ga	481	481	481	481	481	481	481	481	481	481
		21 Ga	481	481	481	481	481	481	481	481	481	481
		20 Ga	481	481	481	481	481	481	481	481	481	481
	NR,k [kN]	28 Ga	427	427	427	427	427	427	427	427	427	427
		26 Ga	456	456	456	456	456	456	456	456	456	456
		25 Ga	456	456	456	456	456	456	456	456	456	456
		23 Ga	456	456	456	456	456	456	456	456	456	456
		22 Ga	456	456	456	456	456	456	456	456	456	456
		21 Ga	456	456	456	456	456	456	456	456	456	456
		20 Ga	456	456	456	456	456	456	456	456	456	456
	u [inch]	-	5/16"	5/16"	3/8"	15/32"	17/32"	5/8"	25/32"	15/16"	1 3/32"	1 1/4"

Above mentioned values are characteristic values
To determine the design value, we suggest applying a material factor of γm = 1,33.

Materials
Screw	Stainless steel 1.4301 (A2) – according to EN ISO 3506
Bond washer	Stainless steel 1.4301 (A2) – according to EN ISO 3506
Material A (tl)	SteelQuality S280GD, S320GD and S350GD - according to EN 10346
Material B (tll)	Wooden Support according to DIN EN 338, ρ = 22 lb/ft3(min. C24)
Drilling capacity	Wood

"
